Drilling Equipment

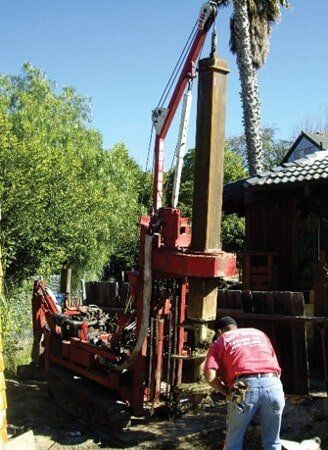

Limited Access Rig

The Limited Access Rig (LAR) is a cost-effective solution for limited-access drilling, In easy to moderately hard drilling. We need just 42 in. of clearance for width and 9 ft. overhead for mobilization. This rig can be partially dismantled to access low ceilings and doors. The LAR is ideal for drilling holes from 12 to 36 in. diameter and depths of up to 85ft. with out stemming. The rig is capable of sampling and down-hole logging. Steel tracks and a rear backhoe make the LAR a versatile rig for limited access areas and hillsides. For areas with no access to track the rig in, a crane can be used to place the LAR in the desired location. Plywood sheets are used to protect landscaping, designer driveways and masonry.

New To The Limited Access Rig

  • Remote engine & hydraulic power unit for inside building jobs. Engine is placed outside building to keep harmful exhaust gases outside. Includes 120ft. of hydraulic hoses.
  • 10" kelly bar. Allows rig to accomplish deeper drilled depths with lower overhead clearances.
Minimum Required Clearance: (Mobilization)
  • Width: 42in.
  • Height: 7ft.
  • Length: 15ft.
Boom Heights: (Operating)
  • 35ft. Kelly - 9ft.
  • 65ft. Kelly - 15ft.
  • 85ft. Kelly - 19ft.
Maximum Depth:

Low Overhead
  • 35ft. (Without Stems)
  • 50ft. (With Stems)
Long Boom
  • 85ft. (Without Stems)
  • 100ft. (With Stems)
Maximum Slope:
  • 2:1 (Mobility Only)
  • Level Area For Drilling
Crane Weight: 6500-7000lbs.
Power Source: Wisconsin 4 cylinder gas
Down Pressure:
Crowd: Hydraulic
Kelly: Friction

Available Diameters: 12-48in.
Reach To Hole Center: 24"
Power Pack Hose Length: 120ft. (Longer lengths avaliable with request)

LoDril

The LoDril is a high production and cost-effective solution for drilling on large sites and steep hillsides. This track mounted rig operates well in tight areas as well. The rig is capable of sampling, down-hole logging and drilled shaft projects. — The LoDril is the ideal for drilling Holes from 18 to 72 in. diameter and depths of up to 50-65 ft. without stemming. Steel tracks make the LoDril adaptable to virtually any drilling surface conditions.
Minimum Required Clearance: W: 9ft. H: 30ft.
Power Source: Caterpillar Turbo Diesel
Maximum Slope: 2:1
Available Diameters: 18-72in Augers & Core Buckets
Depths:

  • 50-65ft. (Without Stems)
  • 100ft. (With Stems)

Crowd: Hydraulic Down Crowd

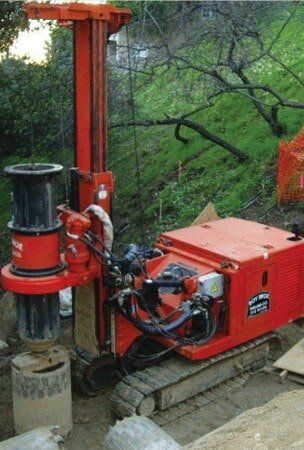

TesCar

The TesCar is a versatile and cost-effective solution for limited-access drilling. With locking kelly bars and hydraulic down crowd this rig excels in easy to hard drilling. This track mounted rig operates well in tight access areas. The rig is capable of sampling, down-hole logging, and drilled shaft projects. At just 54in. wide and 96in tall it is perfect for accessing those hard to reach places. The TesCar is the ideal for drilling borings from 18 to 36 in. diameter and depths of up to 50 ft. with out stemming. Rubber tracks make the TesCar adaptable to virtually any drilling surface conditions.

New To The TesCar

  • Short kelly bar for low overhead drilling
Minimum Required Clearance (Mobilization)

  • Width: 4.5ft
  • Height: 7.5ft
  • Length: 13ft
Operating Clearance Required:

  • Width: 4.5-6ft
  • Height: 8-15ft
  • Length: 13ft
Maximum Depth:

  • 65ft (Without Stems)
  • 85ft (With Stems)
Maximum Slope:

  • 2:1 (Mobility Only)
  • Level Area For Drilling
Weight: 15,500lbs.
Power Source: Hatz Diesel
Torque: 19,500ft-lb.
Down Pressure: 20,000lbs.
Crowd: Hydraulic
Kelly: Locking or friction
Available Diameters: 18-60in.
Reach To Hole Center: 2.5ft

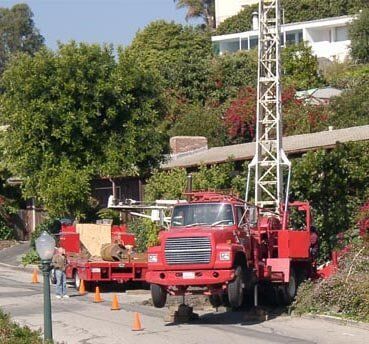

EZ-Bore

The truck mounted EZ-Bore bucket rig is a cost-effective solution for large diameter holes. This bucket rig can drill diameters from 18-72in, and to depths of 90-100ft without stemming. This rig has hydraulic down crowd, drilling in hard rock is no problem The rig is capable of sampling, down-hole logging, setting liners for seepage pits and for drilled shaft projects.
Minimum Required Clearance: W: 9ft.
Minimum Operating Height:

Power Source:
Detroit Diesel
Available Diameters: 18-72in.
Maximum Depth:
  • 90-100ft. (Without Stems)
  • 140ft. (With Stems)
Crowd: Hydraulic Down Crowd
Services: Seepage Pit Liners, Down Hole Logging, Sampling, Dewatering wells, Caissons & Seepage pits
